XPS Foam Board Extrusion Line
XPS Foam Board Extrusion Line designed with a state-of-the-art technology accumulated through a continous
R&D is for the production of homogeneous, closed-cell-structured, extruded polystyrene foam boards,
an economical, optimal acoustic and thermal insulation materials, from Polystyrene and some additives
using a blowing gas by the process of continuous extrusion thus forming a board of the desired thickness.
Production Procedure

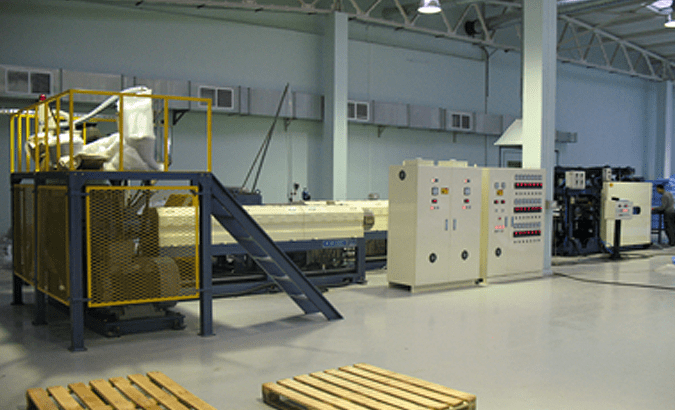

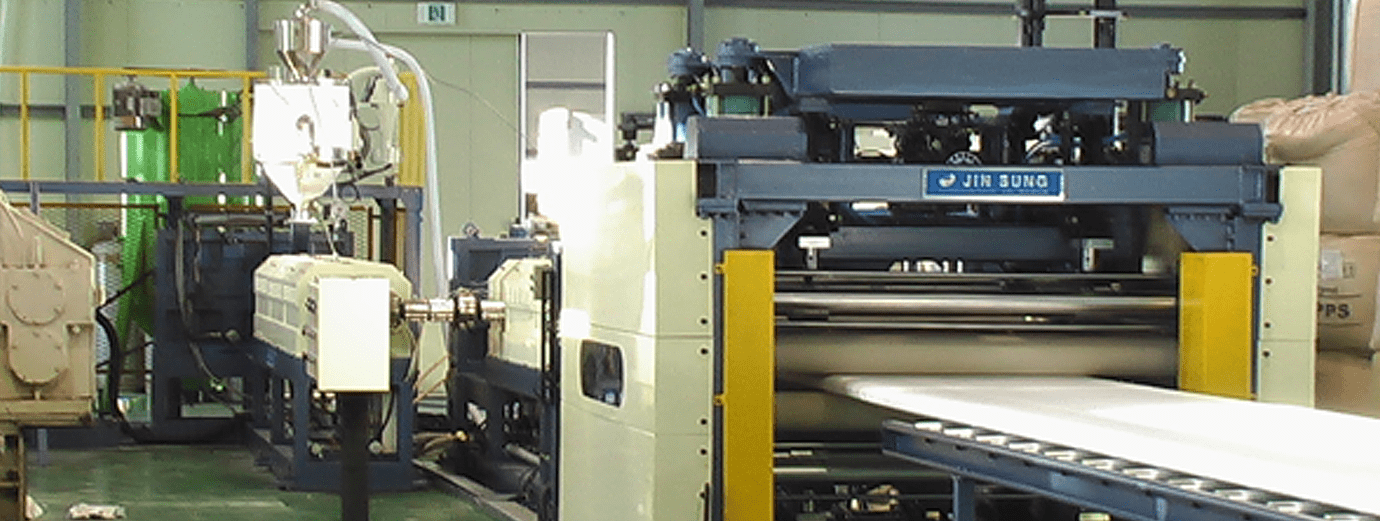

Tandem extruder for homogeneous melt

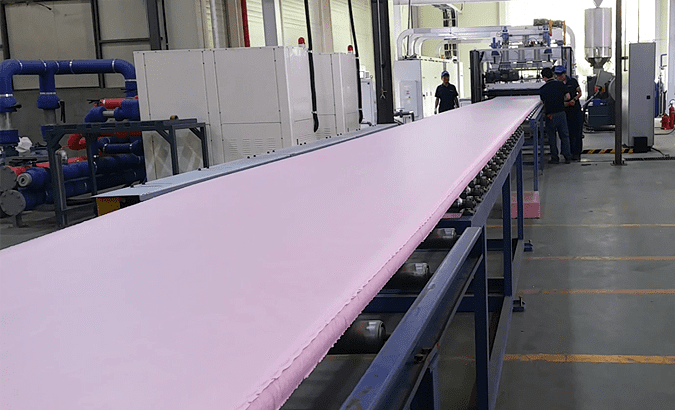

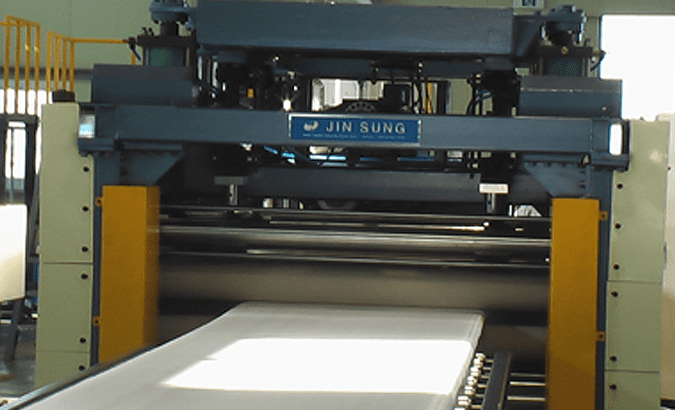

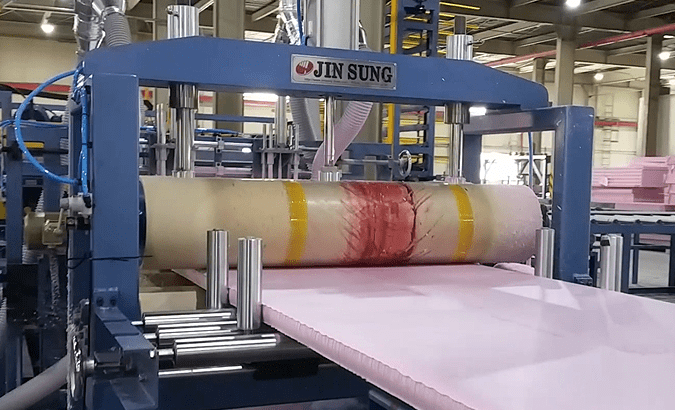

T-die & calibration for forming a solidified board

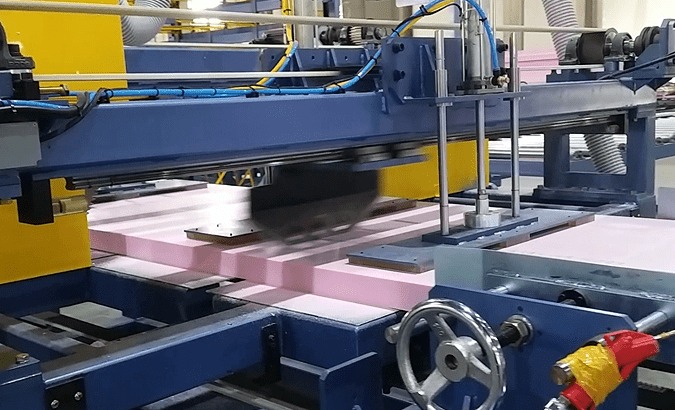

Edge-trimming & longitudinal-cutting for required dimension

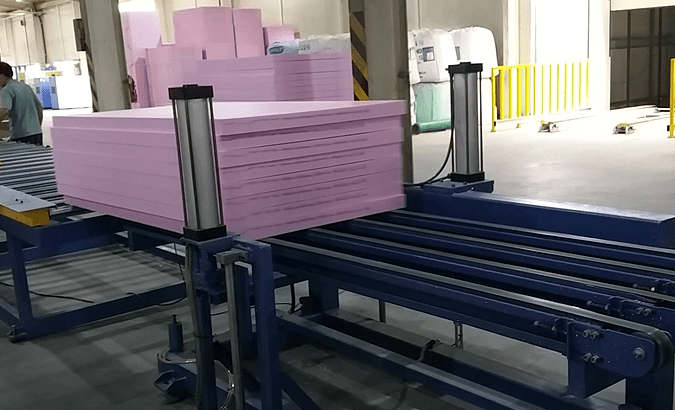

Stacking and packing machine
Features
- High and lasting thermal insulating property; Energy saving solution
- Minimal water & humidity absorbance
- High mechanical resistance
- Very high compression strength
- Absolute dimensional stability
- Self extinguishing properties
- Homogeneous density of the mass
- Immune to the attack of acids and bases
- Inertia climatic at variation
- Lightness
-
Excellent compatibility with building materials like cement, gypsum, lime and sand and superb adherence on concrete
and mortar coatings via treatment of skinning and grooving boards - Easy to transport, cut and apply
- Attractive appearance
- Most of all, all these properties remain constant over the time
- Easy Installation

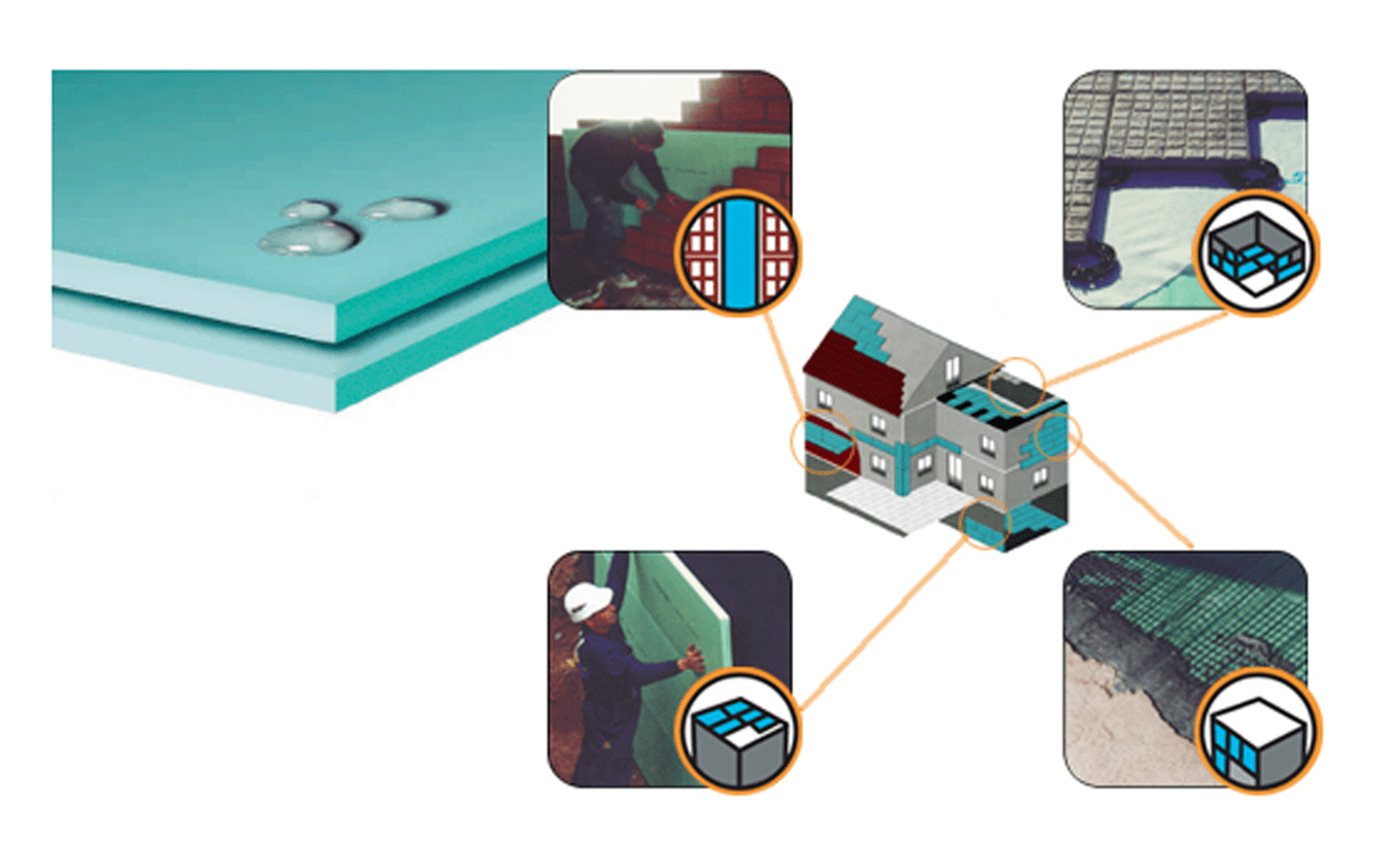

Applications
- XPS foam board for Acoustic and Thermal insulation like wallpaper, carpet under-layer and sun roof board in the Construction field to save huge of energy.
- XPS foam board can be laminated with film or paper for Education materials, decorating objects, advertising board.
- Printable, foldable, embossable, moisture and water resistant, low steam and air permeability, micro-resistant, excellent insulation properties.
Specifications
If you cannot see the text, click on the area and scroll left and right.
Model No. | JS-XPS -120-150 |
JS-XPS -150-200 |
---|---|---|
Screw Dia. | 120 & 150 mm | 150 & 200 mm |
Capacity | 400 kg/hr | 700 kg/hr |
Thickness | 20~70 mm | 30~100 mm |
Width | 600 mm, 900 mm | 600 mm, 900 mm |
Density | 32~40 kg/㎥ | 32~40 kg/㎥ |
Thermal Conductivity(10℃) | 0.025~0.026 W/Mk | |
Compression Strength | 250~300 kPa | |
Water Absorption by | 250~300% Volume | |
Water Vapor Permeability | 0.5~1 ng/Pa sec m | |
Capillarity | None | |
Fire Retard | A |
Edge-Finishing
-

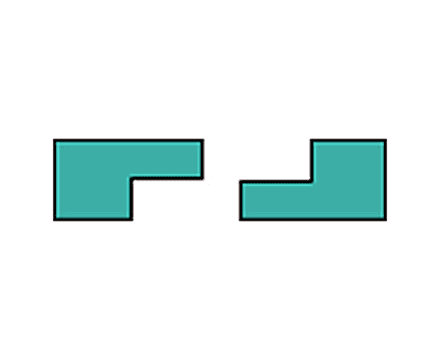

Ship & Lap
-

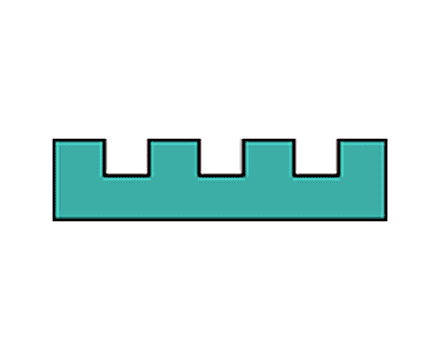

Surface Groove
-

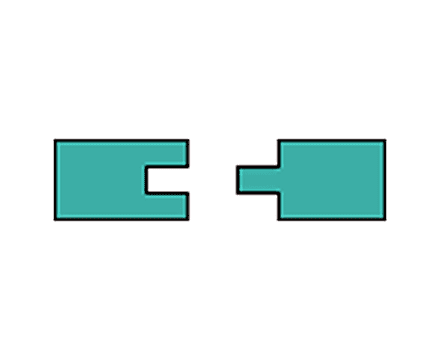

Tongue & Groove
